Until now, offshore crane rental fleets mostly consisted of reconfigured platform cranes, many in operation for more than 25 years, prompting Seatrax engineers to design a modernized, state-of-the-art and reliable rental fleet. Seatrax unleashes its powerful portable fleet of cranes that can be shipped, lifted and built on any platform, drilling rig or vessel in locations worldwide. Offering operators a fresh approach to safe lifting practices, our rental cranes provide superior safety, proven modular assemblies and simple maintenance procedures. With the newest fleet of offshore rental cranes, Seatrax currently has available four models ranging from years 2008-2009 with more in development. These models include: the Model 70P, the Model 90P, the Model S140P and the Model S230P. Using pre-engineered lifts, each of our portable rental cranes follows standard Seatrax design principles that can be tailored to meet a client's specific needs. Composed of easily-managed packages, our cranes can be deployed quickly to locations worldwide. Seatrax Rental Crane Uses General construction Pipeline installation/removal Derrick building Platform salvage Crane installation/ removal Remedial well service support Plug and abandonment Diving support Compressor upgrades/replacement Seatrax Rental Crane Features Patented Mechanical Anti-Two-Block System CCM7000 Crane Control System Digital Color Camera, Wind Gauge, Boom Lights Personnel Approved Lifting Engineered Lifts In-House Manufactured Hoists Full Hydraulic Operation API Spec 2C, 6th Edition Compliant For more information, contact us at 504.394.4600 or Seatrax Headquarters at 713.896.6500.

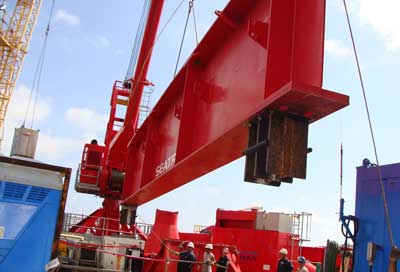

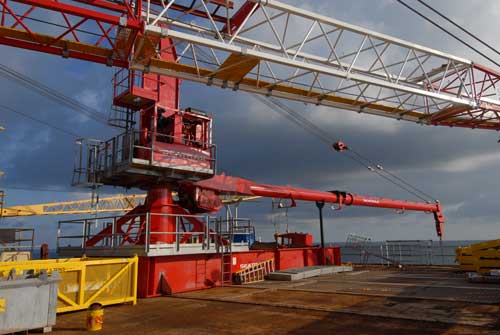

Model 70P Maximum Rating: 70 Ton Conventional Kingpost Heaviest Component Weight: Approx. 8 Tons Typical Boom Lengths: 60-80 Foot Solid Pipe Boom Diesel Engine Prime Mover Seatrax Draw-Works Type Band Brake Hoists Approved for Personnel Lifting Fixed Displacement Gear Type Hydraulic System Single Pinion Platform Service Slew Drive Arrangement Seatrax Mechanical Anti-Two-Blocking System Open Deck Enclosed Operator’s Station API Specification 2C, Sixth Edition Compliant For more information on this model, download our 70P spec sheet or call 1.504.394.4600.

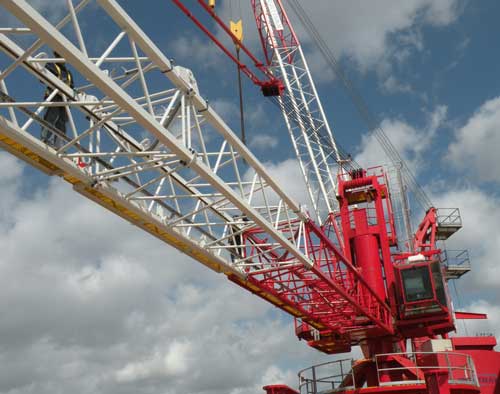

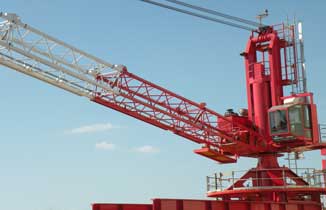

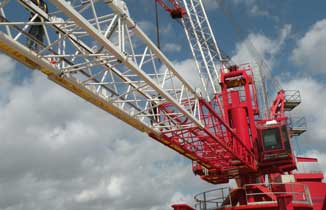

Model 90P Maximum Rating: 90 Ton Conventional Kingpost Heaviest Component Weight: Approx. 9 Tons Typical Boom Lengths: 80-120 Foot Lattice Type Boom Diesel Engine Prime Mover Seatrax Draw-Works Type Band Brake Hoists Approved for Personnel Lifting Fixed Displacement Gear Type Hydraulic System Single Pinion Platform Service Slew Drive Arrangement Seatrax Mechanical Anti-Two-Blocking System Open Deck Operator's Cab with Climate Control Configuration API Specification 2C, Sixth Edition Compliant For more information on this model, download our 90P spec sheet or call 1.504.394.4600.

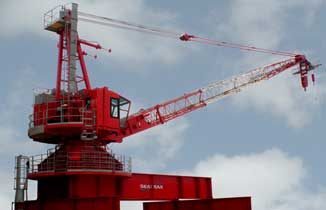

	Model S140P Maximum Rating: 140 Ton Inverted Kingpost Heaviest Component Weight: Approx. 12 Tons Typical Boom Lengths: 80-120 Foot Lattice Type Boom Diesel Engine Prime Mover Seatrax Draw-Works Type Band Brake Hoists Approved for Personnel Lifting High-Pressure Drilling Duty Hydraulic System Dual Pinion Heavy Floating Service Slew Drive Arrangement Seatrax Mechanical Anti-Two-Blocking System Fully Enclosed Machinery Spaces Operator's Cab with Climate/Noise Control Configuration API Specification 2C, Sixth Edition Compliant For more information on this model, download our S140P spec sheet or call 1.504.394.4600. Be sure to visit us at LAGCOE in Lafayette, LA from Oct. 27-29 to see the newest addition to the Seatrax rental crane fleet, the Model S140P, in action!

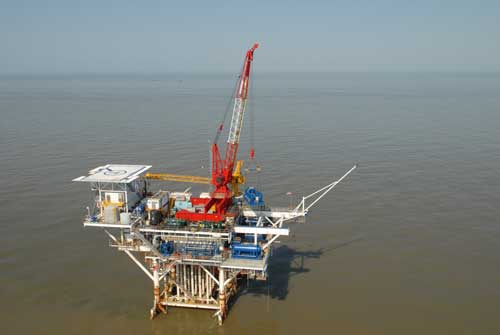

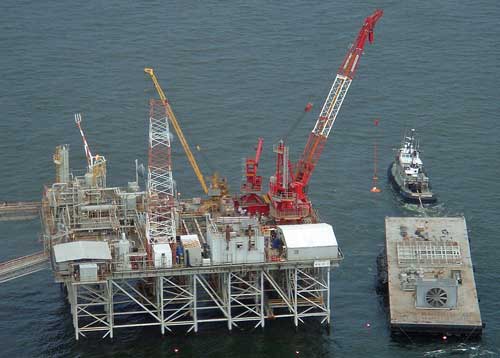

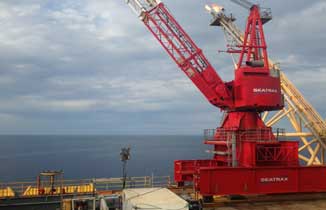

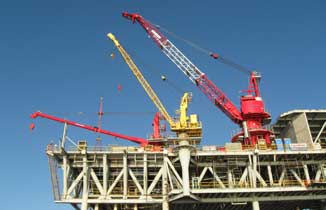

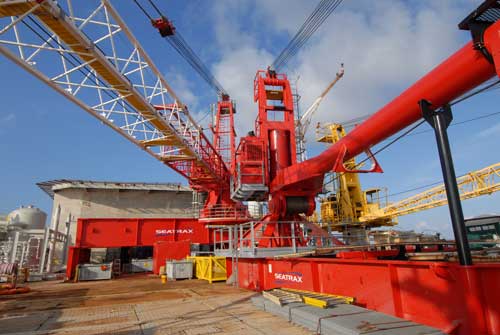

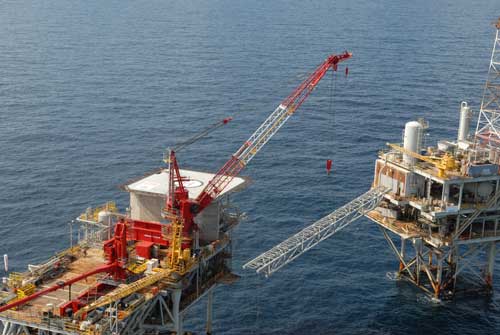

	Model S230P Maximum Rating: 230 Ton Inverted Kingpost Heaviest Component Weight: Approx. 15 Tons Typical Boom Lengths: 100-160 Foot Lattice Type Boom Diesel Engine Prime Mover Seatrax Draw-Works Type Band Brake Hoists Approved for Personnel Lifting High-Pressure Drilling Duty Hydraulic System Triple Pinion Heavy Floating Service Slew Drive Arrangement Seatrax Mechanical Anti-Two-Blocking System Fully Enclosed Machinery Spaces Operator's Cab with Climate/Noise Control Configuration API Specification 2C, Sixth Edition Compliant For more information on this model, download our S230P spec sheet or call 1.504.394.4600.
